Maximize your green hydrogen process with Sepralyte Liquid Gas Coalescers. Contact our experts and let us help you take your process to the next level.
SepraLYTE™ Liquid/Gas Coalescers – Low ΔP Aerosol Removal for Hydrogen
SepraLYTE liquid/gas coalescers are designed for green hydrogen applications where removing liquid aerosols from hydrogen must be achieved with minimal pressure drop and in a compact footprint. Their polypropylene media supports broad chemical compatibility across a wide range of process conditions.
What is SepraLYTE?
SepraLYTE is a liquid/gas coalescing solution engineered to remove fine liquid aerosols such as water and electrolyte mist from hydrogen streams. It helps support downstream equipment protection and process efficiency, especially in systems with tight pressure drop limits.
Green Hydrogen Production Process: Where SepraLYTE Fits
Hydrogen exiting an electrolyzer is typically saturated with moisture and may carry fine droplets including water aerosol or electrolyte mist in alkaline systems. Separating these aerosols at the gas cleaning stage helps protect downstream compression, deoxo and drying operations while supporting overall system reliability and hydrogen purity goals.
An overview of SepraLYTE liquid/gas coalescers and their role in removing liquid aerosols from hydrogen streams.
Illustration of the green hydrogen production process showing the gas‑cleaning stage where aerosol removal using SepraLYTE occurs.
SepraLYTE is purpose designed for this aerosol removal step, providing effective liquid/gas separation in applications where maintaining a very low pressure drop is important.
Key Advantages of SepraLYTE Liquid Gas Coalescers
- Low pressure drop to support efficiency in systems with limited allowable ΔP
- Chemical compatibility provided by polypropylene coalescer media
- Compact design that helps reduce equipment footprint
See SepraLYTE in Action
Explore how SepraLYTE operates, how it is installed and how it supports hydrogen gas cleaning.
Full benefits of SepraLYTE Coalescers
Full benefits of SepraLYTE Coalescers
Installing a Pall SepraLYTE Liquid Gas Coalescer
A step by step demonstration of how to install and replace a SepraLYTE coalescer cartridge within a hydrogen gas cleaning system.

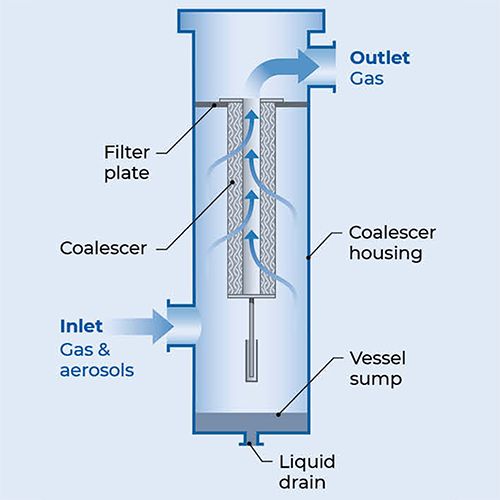

How SepraLYTE Coalescers Work
A simplified look at the coalescing process, showing how droplets combine and drain to help deliver cleaner hydrogen gas.
SepraLYTE Liquid Gas Coalescers provide:
Low pressure drop
Chemical compatibility
Compact design
Talk to Our Experts
Maximize the performance of your green hydrogen process with SepraLYTE coalescers. Complete the form and our team will help you size and select the right solution for your application.
Frequently Asked Questions
What is SepraLYTE™ used for?
SepraLYTE™ liquid/gas coalescers are designed for the green hydrogen market to remove liquid aerosols from hydrogen gas with minimal pressure drop and small vessel size.
Why does hydrogen from an electrolyzer contain aerosols?
Hydrogen generated using an electrolyzer often contains aerosols. In alkaline electrolyzers, the hydrogen gas produced can contain significant amounts of liquid electrolyte mist dispersed within the gas stream, typically consisting of about 30% potassium hydroxide solution.
Why is removing electrolyte mist important?
Electrolyte mist is highly corrosive. If not removed, it can cause corrosion and fouling in downstream equipment such as compressors and valves. This increases maintenance needs and negatively impacts hydrogen processing steps.
What types of aerosols can SepraLYTE™ remove?
SepraLYTE™ coalescers excel in separating water or electrolyte aerosols, including mist from 30% potassium hydroxide solution present in alkaline hydrogen production.
Where is SepraLYTE™ installed in the hydrogen production process?
SepraLYTE™ is used in the hydrogen gas cleaning step, after the electrolyzer and before downstream processes such as compression, deoxo units and drying systems.
Why is low pressure drop important in this application?
Hydrogen produced in atmospheric alkaline electrolysis is only slightly above atmospheric pressure, which means the available pressure drop for gas cleaning is limited. Aerosol removal must therefore be achieved with minimal differential pressure.
Is SepraLYTE™ compatible with KOH electrolyte conditions?
Yes. SepraLYTE™ uses polypropylene coalescer media selected for chemical compatibility with corrosive electrolyte aerosols such as 30% potassium hydroxide mist.
How does SepraLYTE™ support compact system design?
The compact design of SepraLYTE™ enables considerable size reduction of separation systems, which helps green hydrogen producers reduce installation and material handling requirements.
Benefits of SepraLYTE’s compact design
Significant capex reduction
Ease of Handling
Ease of transportation
