Process Description - Refinery Final Products' Storage and Delivery


The major products of oil refining are: LPG, gasoline, diesel, jet fuel, fuel oil, and kerosene—a blend of several different streams produced by the various refinery processes to meet final specifications. These products are then stored in a tank farm on the refinery premises before being delivered to retail markets. Delivery may be via pipeline to area distribution terminals, or loaded onto tanker trucks for direct delivery to retail outlets.


Prior to leaving the site, the products are usually filtered and coalesced to remove solid contaminants and suspended water. Contaminants, such as rust and pipe scale can foul and erode distribution equipment (e.g. pumps, nozzles, flow meters) as well as end users’ equipment (e.g. engines, boilers). Water can also cause engine maintenance problems. Water in fuels often extracts highly corrosive sulfur compounds and chlorides exacerbating corrosion and plugging in engine injection systems or the engine itself.


Refinery Needs


  • Achieve oil production quotas by meeting product quality particulate and water specs
  • Achieve product specs without the need for expensive reprocessing
  • Protection against corrosion and contamination of product transfer equipment
  • Protection of end users’ equipment against corrosion and plugging



Production Challenge / Pall Solution for the Refinery Products Filtration


Meet particulate specifications for final products

Improve refinery productivity and ensure product specification by removal of particulates formed in storage equipment upstream of the distribution points.


  • A range of absolute and nominal rated filter elements is available to reduce suspended solids to <5 ppmw, and reduce fouling and erosion of distribution equipment as well as end users’ equipment.
Guard against hazy final products leading to corrosion and plugging of end users’ equipment

Reduce corrosive nature of products by removing suspended water upstream of the distribution points.


  • High efficiency AquaSep® XS liquid/liquid coalescers reliably meet ‘clear and bright’ product specification and 15 ppmw downstream per Aqua-Glo1 measurement, offering excellent end user equipment protection from corrosion and plugging.

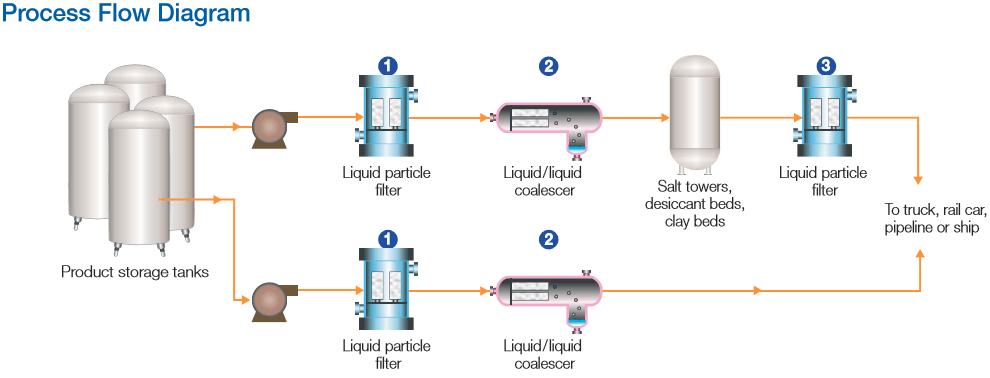

Key Application/Filter Recommendations (other applications not shown)


Diagram numberApplicationPall ProductCustomer Benefit
1Prefiltration prior to liquid/liquid coalescer

Ultipleat® High Flow filters

Marksman™ High Flow filters

Low operating costs by extending L/L coalescer life
2Free water removal from fuels for shipmentAquaSep XS liquid/liquid coalescers

Reduced salt costs when downstream salt dryers are used


Elimination of interruptions and changeout costs due to replacement of disarmed coalescers


Low cost per gallon treated

3Downstream of salt, desiccant or clay treatment

Ultipleat® High Flow filters

Marksman™ High Flow filters

Freedom from off-spec shipments due to high solids levels

For more information on improving the efficiency of your processes, contact our team of filtration experts.
