Cider Producer Maximizes Yield and Increases Capacity

Learn how Pall’s cost-effective solutions are helping companies reduce cider and alcohol losses and improve yield.

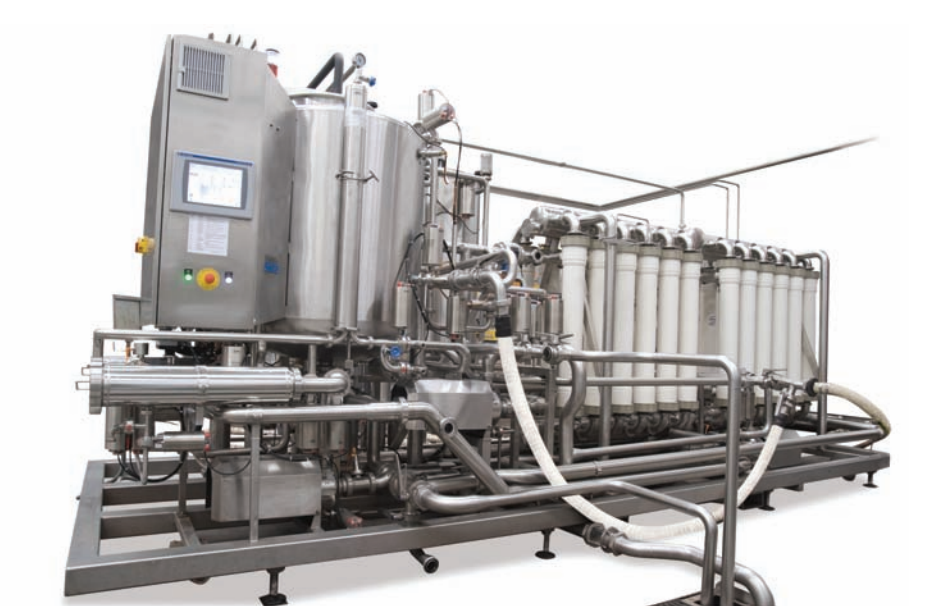

Cider Producer Maximizes Yield and Increases Capacity with the Oenoflow™ HS System

Overview

Filtration is a key operation in modern cider production to deliver visually bright and shelf-stable products. Traditionally, clarifying cider after filtration is performed with diatomaceous earth or sheet-based filtration technologies. However, with more favorable economics, easier operation and lower waste volumes, crossflow filtration systems like Pall’s Oenoflow XL system are being widely adopted over the past decade.



While the aforementioned clarification systems can concentrate to high solids levels, there is still a significant amount of recoverable alcohol in the yeast at the bottom of fermentation or maturation tanks and filtration system concentrates. With Pall’s newest member of the Oenoflow family of systems, the High Solids (HS) system, cider producers can now recover high-quality cider from these lees streams to gain up to 4% capacity with no additional capital investment.



The Challenge

A cider mill producing 20 million liters of cider per year uses an Oenoflow XL crossflow system for post-fermentation clarification. After fermentation and maturation, the Oenoflow system clarifies the cider while concentrating the solids. Even after consistently concentrating up to 25% solids (v/v), the cider losses are in the range of 4%. The cider maker was looking for an economically reasonable way to increase yield.



The Solution

To recover additional alcohol from the cider lees, the customer purchased Pall’s new Oenoflow HS or High Solids system. The system employs hollow fiber membranes similar to those already used in their cider clarification application. However, the Oenoflow HS membranes have a wider internal fiber diameter to concentrate the solids up to about 70% by volume. For the new process, after fermentation and maturation, the hard cider at 10% alcohol is filtered by the Oenoflow XL system while the tank bottoms are sent to a lees holding tank that also serves as the feed supply for the Oenoflow HS lees filtration system.



The XL system filtrate or clarified cider is sent downstream for final blending to bottle strength while the concentrate is sent to the lees holding tank to be further concentrated by the HS system. The final HS system concentrate is sent for off-site disposal. A schematic is shown above. The Oenoflow HS system design incorporates diafiltration, a process where water is added to the lees concentrate. Diafiltration “washes out” alcohol from the yeast to increase recovery and improve the return on investment. The resulting alcohol strength of the filtered cider batch is reduced; however, this helps to lower the water required for the downstream blending to bottle strength.



By implementing the Oenoflow HS system, customers can reduce their cider losses from 800,000 liters to approximately 285,000 liters per year. With the cider at 10% strength, this means alcohol losses of 28,500 liters per year. By adding diafiltration, the alcohol losses can be further reduced to approximately 3,500 liters per year, resulting in a system payback in less than a year. You can compare the losses for the process with and without the Oenoflow HS system in the tables below.



In addition to the added value from the recovered alcohol, the customer was able to realize further benefits. They increased their finished cider capacity without the need for additional capital investments like fermentation tanks and the associated equipment. Without diafiltration, the HS system alone increased capacity by 2.6%. Considering diafiltration, the cider capacity increased by 3.8%. The final concentrate or waste volumes were also reduced therefore lowering the cost for off-site disposal.



The Benefits

The benefits realized upon implementation of the Oenoflow HS system in this application include:



  • Alcohol losses decreased from 80,000 liters per year to approximately 3,500 liters per year.
  • 3.8% increase in finished cider capacity without additional capital investments like fermentation vessels and the associated equipment.
  • Attractive investment with payback in less than one year.
  • Lower concentrate volumes for reduced off-site disposal costs.
  • Automated and controlled process.



This case study has been replicated at other cider producers of similar scales with comparable economic drivers.
